Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

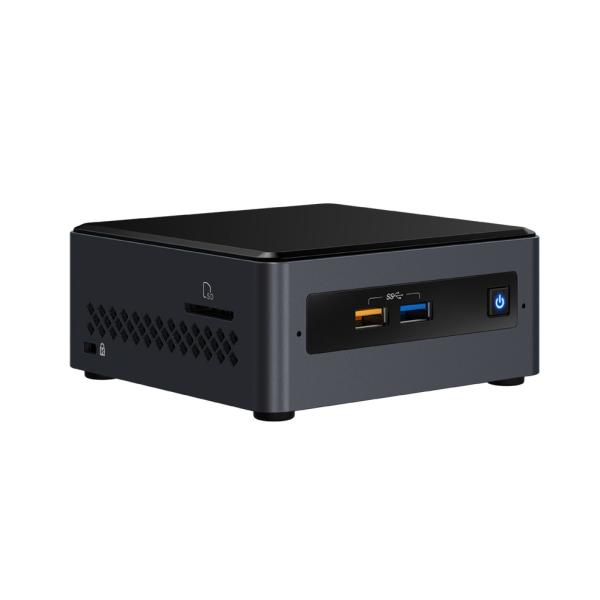

Vendorcode BOXNUC7PJYHN2
EAN code 5032037220811
Warranty 3 jaar, Pick-Up & Return
Gross size 117 x 51 x 112mm
Packaging 1/ retail box
Packaging bulk
5/ carton box
Audio features
Audio channel(s) output
7.1 channels
Connectivity
Card-reader integrated
Yes
Internal USB2.0 port(s) quantity
2
Memory-card compatibility
SDXC
Number of SATA III connectors
1
Removable memory card slot
SDXC with UHS-I support
USB version
2.0/ 3.2 Gen 1 (3.1 Gen 1)
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Chipset
PCIe configurations
1x4 + 1x2, 2x1 + 1x2 + 1x2, 4x1
Compatibility
Motherboard form factor
UCFF
Storage
Interface (Storage)
Serial-ATA3
Storage drive sizes supported
2.5 inch
Memory
Memory bandwidth (max)
38.4 GB/s
Memory clock-frequency
2400 MHz
Memory module type
SO-DIMM
Graphic cards
Processor clock-frequency
1.5 GHz
Processor turbo clock-frequency
2.8 GHz
Model
WEthernet LAN-chip model
Intel® Dual Band Wireless-AC 9462
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Processor codename
Gemini Lake
Processor family
Intel® Pentium ®
Processor manufacturer
Intel
Processor number of cores
4
Processor number of threads
4
Thermal Design Power (TDP)
10 W
Software
Operating system installed
No
Wireless network
Wireless LAN standard
Wireless LAN 5 (802.11ac)
Here you will find an overview of the documents for this product, suc as user manuals, datasheets (with extended technical specs), drivers & firmware, video tutorials, and more. Where possible we will include multilingual versions of all documents.
Please click the link(s) below for further details.
Manufacturer website
