UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Four PCIe 4.0x4 M.2
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Connecting the Future - Rear USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
RGB Fusion Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

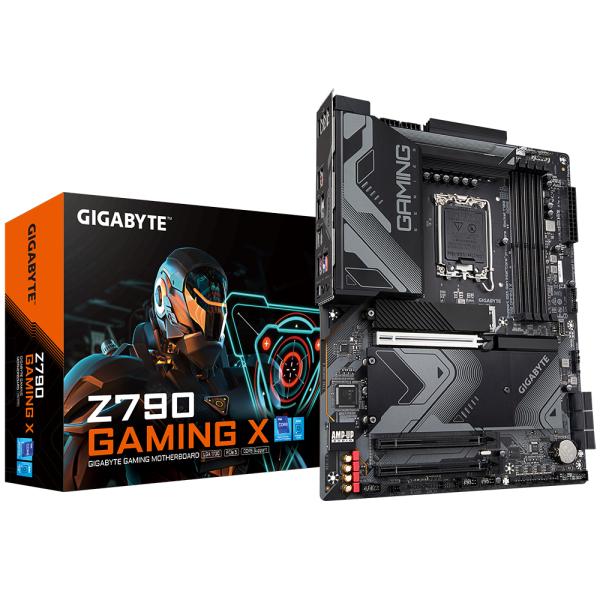

Vendorcode Z790 GAMING X
EAN code 4719331849986
Warranty 2 jaar / 2 Years, Carry-In Qwerty
Gross size 575 x 365 x 375 mm
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Audio features
Audio output channels
7.1 channels
Front panel audio connector
Yes
Connectivity
Ethernet interface type
2.5 Gigabit Ethernet
Number of SATA III connectors
6
USB port(s) quantity type
USB Type-A, USB Type-C
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
3
USB3.2 Gen 1 (3.1 Gen 1) connectors
1
USB3.2 Gen 2 (3.1 Gen 2) Type-A port(s) quantity
2
USB3.2 Gen 2 (3.1 Gen 2) connectors
1
Chipset
Chipset (motherboard)
Intel
Desktop Management Interface (DMI) version
2.7
Trusted Platform Module (TPM) connector
Yes
Compatibility
Form factor (Motherboard)
ATX
Storage
Storage interfaces supported
M.2, PCIe 4.0, Serial-ATAIII
Memory
Maximum memory size
128 GB
Memory clock-frequency
4000 MHz
4800 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
Memory clock-frequency (max)
7600 MHz
Graphic cards
Multi-GPU (SLI/CrossfireX) support
Crossfire
Displays
Maximum resolution
4096x2304 pixels
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Compatible processor series
Intel® Celeron®
Intel® Core i3
Intel® Core i5
Intel® Core i7
Intel® Core i9, Intel® Pentium ® Gold
Processor manufacturer
Intel
Processor socket(s) supported
LGA1700
Power supply
ATX Power connector (24-pin)
Yes
