WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

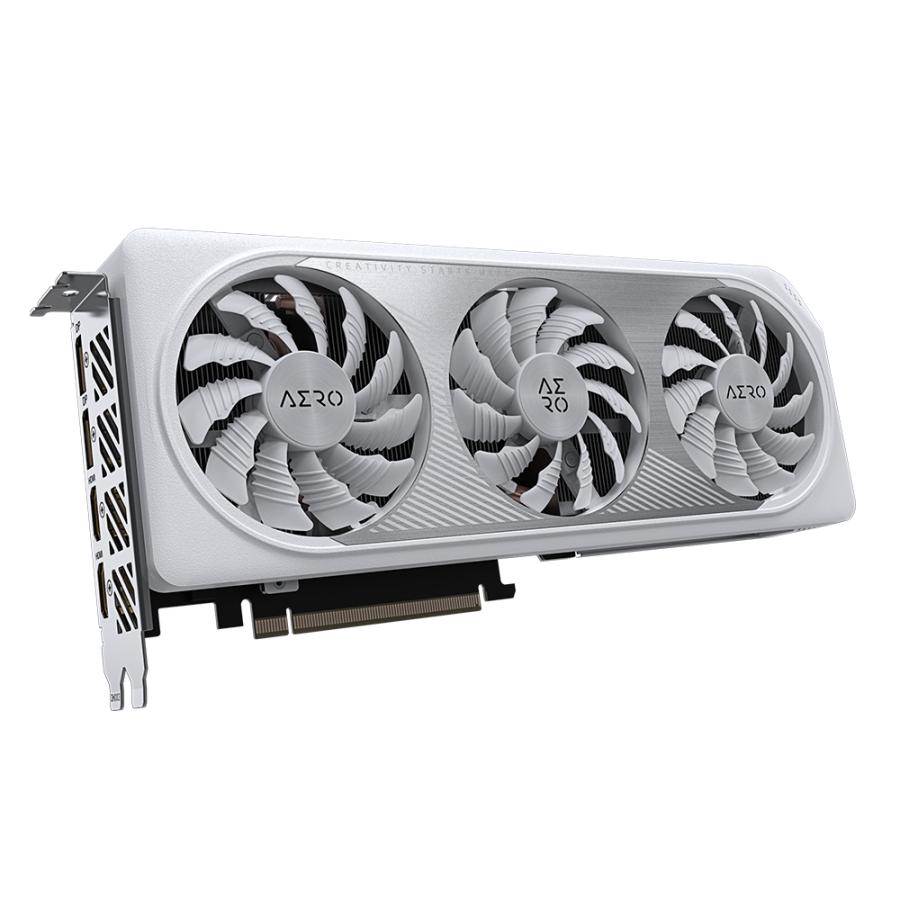

Vendorcode GV-N406TAERO OC-8GD
EAN code 4719331313449
Warranty 2 jaar / 2 Years, Carry-In Qwerty
Gross size 117 x 50 x 281mm
Packaging 1/ retail box
Packaging bulk
carton box
Color Wit
Coolers
Cooling technology
GIGABYTE WINDFORCE 3 X
Number of fans installed
3 fan(s)
Compatibility
Form factor
Full-Height Full-Length (FH/FL)
Memory
Graphics card memory type
GDDR6
Graphic cards
Discrete graphics card memory
8 GB
Graphics adapter model
GeForce RTX 4060 Ti
Graphics adapter-family
NVIDIA
Multi-GPU (SLI/CrossfireX) support
Not supported
Processor turbo clock-frequency
2580 MHz
Displays
Maximum resolution
7680x4320 pixels
Number of displays supported
4
Power supply
Minimum system power supply
500 W
Supplementary power connectors
1x8-pin
Processor features
DirectX version
12 Ultimate
Properties
Quick installation guide
Yes
Storage
Data transfer rate
18 GBps
