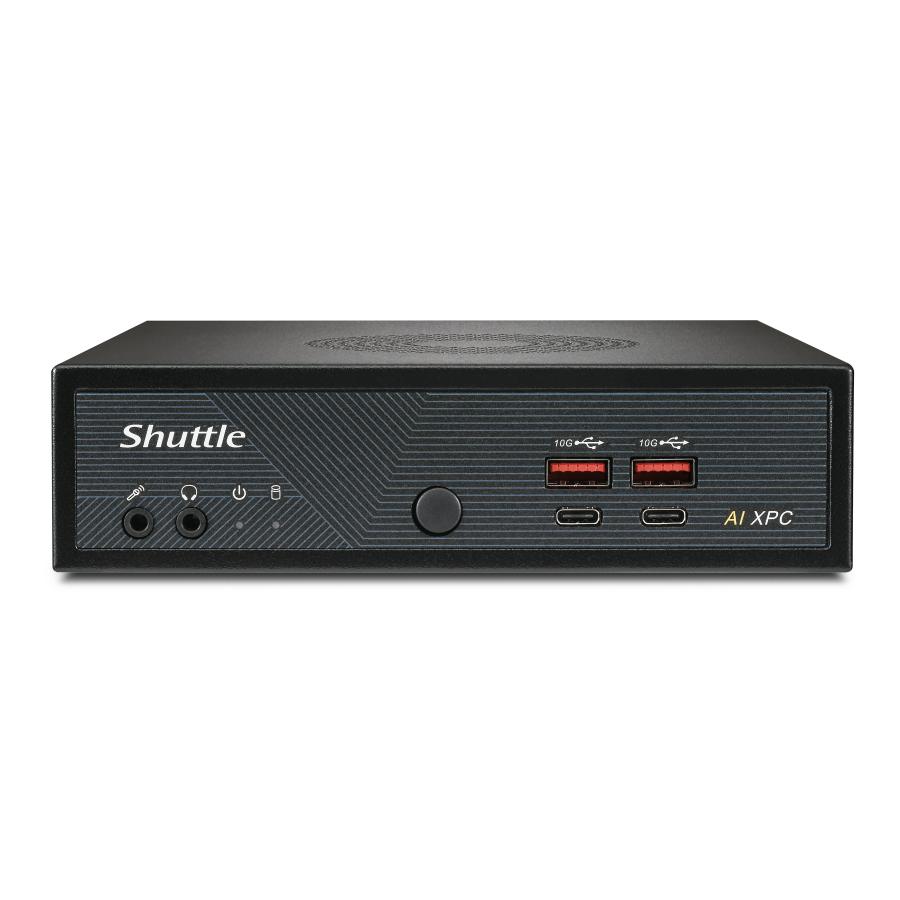

Shuttle Slim AI PC DN11H5 Intel Core Ultra 5 125H
Intel Arc graphics
2xHDMI
2x DP
4x 2.5Gbit LAN
VESA
24/7 permanent gebruik
Type behuizing: 1,35L maat pc
Type product: Mini PC barebone
Chipset moederbord: Intel SoC
BIOS type: UEFI AMI
Ondersteunde geheugen types: DDR5-SDRAM
Aantal geheugenslots: 2
Maximum intern geheugen: 96 GB
Ondersteunde types opslag-drives: SSD
Opslag schijf-interface: PCI Express
Aantal Ethernet LAN (RJ-45)-poorten: 4
Type koeling: Actief
Netvoeding: 120 W
Vendorcode PIB-DN11H501
EAN code 0887993007298
Garantie 2 jaar/ 2 year, carry-in to Shuttle
Bruto afmetingen 190 x 43 x 165mm
Bruto gewicht 1.23
Verpakking 1/ retail box
Verpakking overdoos carton box
Kleur Zwart
Connectivity
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
0
USB3.2 Gen 2 (3.1 Gen 2) Type-A port(s) quantity
6
USB3.2 Gen 2 (3.1 Gen 2) Type-C port(s) quantity
2
Certification
Compliance Certifications
BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus
Sustainability Certifications
ENERGY STAR, ErP
Chipset
Chipset (motherboard)
Intel® SoC
Compatibility
Chassis type
1.35l sized PC
Opslag
Storage interface
PCI Express
Geheugen
Memory clock-frequency
5600 MHz
Memory module type
SO-DIMM
Grafische kaarten
On-board graphics adapter
Yes
Processor turbo clock-frequency
4.5 GHz
Monitoren
Maximum resolution
3840x2160 pixels
Number of displays supported
4
Panel mounting interface
75x75, 100x100 mm
Netwerk producten
Ethernet LAN RJ-45 port(s) quantity
4
Processoren
Processor family
Intel® Core Ultra 5
Processor generation
Intel® Core Ultra (Series 1)
Processor manufacturer
Intel
Processor number of cores
14
Processor number of threads
18
Voedingen
Nominal power output
120 W
Number of power supply units
1
Video port(s)
VGA (D-Sub) port(s) quantity
0
