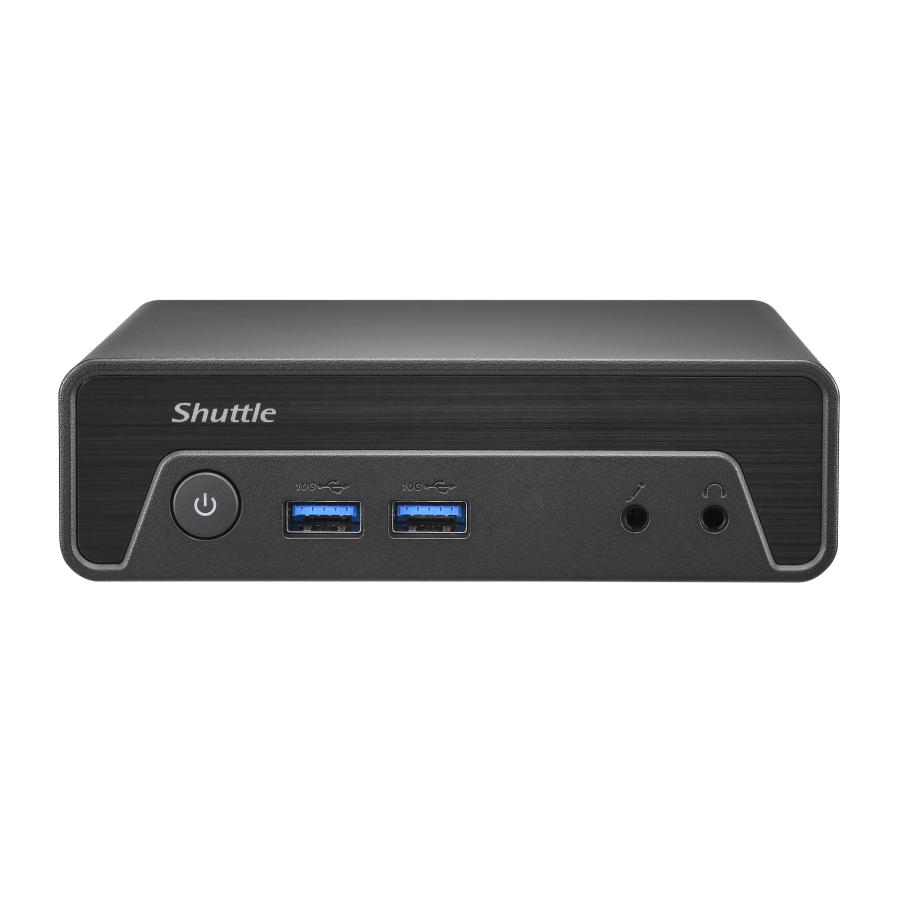

Shuttle Nano PC NE10N
Intel N 100
1x HDMI
1x DP
6x USB
1x LAN
ventilatorloos
24/7 permanent gebruik
incl
VESA
Type behuizing: 0,6L maat pc
Type product: Mini PC barebone
Chipset moederbord: Intel SoC
BIOS type: EFI AMI
Ondersteunde geheugen types: DDR4-SDRAM
Aantal geheugenslots: 1
Maximum intern geheugen: 16 GB
Ondersteunde types opslag-drives: SSD
Opslag schijf-interface: PCI Express
SATA
Aantal Ethernet LAN (RJ-45)-poorten: 1
Type koeling: Passief
Netvoeding: 65 W
Vendorcode PFB-NE10N101
EAN code 0887993007779
Garantie 2 jaar/ 2 year, carry-in to Shuttle
Bruto afmetingen 135 x 39 x 115 mm
Bruto gewicht 1.50
Verpakking 1/ retail box
Verpakking overdoos carton box
Kleur Zwart
Connectivity
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
0
USB3.2 Gen 2 (3.1 Gen 2) Type-A port(s) quantity
4
Certification
Compliance Certifications
BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Sustainability Certifications
ENERGY STAR, ErP
Chipset
Chipset (motherboard)
Intel® SoC
Compatibility
Chassis type
0.6l sized PC
Opslag
Storage interface
PCI Express, Serial-ATA
Geheugen
Memory clock-frequency
3200 MHz
Memory module type
SO-DIMM
Grafische kaarten
On-board graphics adapter
Yes
Processor turbo clock-frequency
3.4 GHz
Monitoren
Panel mounting interface
75x75, 100x100 mm
Netwerk producten
Ethernet LAN RJ-45 port(s) quantity
1
Processoren
Processor manufacturer
Intel
Processor number of cores
4
Processor number of threads
4
Voedingen
AC adapter output current
3.42 A
AC adapter output voltage
19v
Number of power supply units
1
Video port(s)
VGA (D-Sub) port(s) quantity
0
Op deze plaats verwijzen wij u naar diverse documenten, zoals handleidingen, datasheets (met uitgebreide specificaties), drivers & firmware, video overzicht e.d. Wij vermelden zoveel mogelijk links naar Nederlandstalige documenten, als die er niet zijn de Engelstalige.
Klik op de link(s) voor meer informatie.
Website fabrikantDatasheetGebruikershandleiding
